2 way solenoid valve normally closed low temperature solenoid control valve
2 way solenoid valve normally closed low temperature solenoid control valve
1. How To Order
Model Orifice Port Thread Body Seal Coil Voltage
NLGG11 10-1.0 40-4.0 1-1/8" G- G B-Brass R-Sepcial SA81B 1-AC220V 2.DC24V
25-2.5 45-4.5 2-1/4" N- NPT S-SS304/316 3-AC110V 4.DC12V
30-3.0 50-5.0 3-3/8" R- BSPT 5-AC24V 6-DC6V
35-3.5 60-6.0 7-DC36V
NLGG31 normally closed with SA81B coil,
Example : NLGG31 30 1 GBR S91B1: NLGG31 Series, normal closed 3.0mm orifice, G1/8",
brass body, special seals, coil SA81B, AC220V.
2. Solenoid Valve Specification
Medium: Air, water, steam, oil, etc. Temperature: R seal:Special chemical resistance
Orifice: 1.0, 1.6, 2.0, 2.5, 3.0,3.5,4.0, -80℃~200℃(-112℉~392℉)
5.0, 6.0,(mm)
Pressure: NLGG11:0.0MPA~4.0MPA (0.0PSI~550PSI) Port thread: NPT, G Thread
Port size: 1/8”, 1/4”, 3/8”, 1/2”
Voltage: DC:6VDC,12VDC, 24VDC, 36VDC, Coils: SA81B,22VA(AC),17W(DC),IP65,100%ED
AC:24VAC, 110VAC, 120VAC, 220VAC, 240VAC
Tolerance: ±10% Character: 1. Compact design to save the space.
Material: Body- Brass, stainless steel, Aluminum, 2. Direct acting, 0 bar generated.
Seal- VITION, NBR, EPDM, PTFE
Armature- SS304
Plunger- SS430F
Stop- SS430F
Spring- SS304
Shading Rings- Copper
Special Coils: Latching coil DC6~24V
3. Detailed Information
| Model | Port | Orifice | CV | Min. Pressure | Max. Pressure | Body Material | Seal Material | Coil |
| AC(22VA) | DC(6W) |
| NLGG11161XXX | 1/8" | 1.6 | 0.11 | 0.0Mpa | 4.0Mpa | 3.5Mpa | Brass SS304 SS316 | R (SPECIAL) | SA81B |
| NLGG11251XXX | 1/8" | 2.5 | 0.18 | 0.0Mpa | 2.5Mpa | 2.0Mpa | SA81B |
| NLGG11301XXX | 1/8" | 3.0 | 0.3 | 0.0Mpa | 2.0Mpa | 1.8Mpa | SA81B |
| NLGG11252XXX | 1/4" | 2.5 | 0.18 | 0.0Mpa | 2.5Mpa | 2.0Mpa | SA81B |
| NLGG11302XXX | 1/4" | 3.0 | 0.3 | 0.0Mpa | 2.0Mpa | 1.8Mpa | SA81B |
| NLGG11352XXX | 1/4" | 3.5 | 0.34 | 0.0Mpa | 1.5Mpa | 1.5Mpa | SA81B |
| NLGG11402XXX | 1/4" | 4.0 | 0.5 | 0.0Mpa | 1.0Mpa | 1.0Mpa | SA81B |
| NLGG11452XXX | 1/4" | 4.5 | 0.61 | 0.0Mpa | 0.5Mpa | 0.5Mpa | SA81B |
| NLGG11403XXX | 3/8" | 4.0 | 0.5 | 0.0Mpa | 1.0Mpa | 1.0Mpa | SA81B |
| NLGG11453XXX | 3/8" | 4.5 | 0.61 | 0.0Mpa | 0.5Mpa | 0.5Mpa | SA81B |
| NLGG11503XXX | 3/8" | 5.0 | 0.71 | 0.0Mpa | 0.5Mpa | 0.5Mpa | SA81B |
| NLGG11603XXX | 3/8" | 6.0 | 0.8 | 0.0Mpa | 0.5Mpa | 0.5Mpa | SA81B |

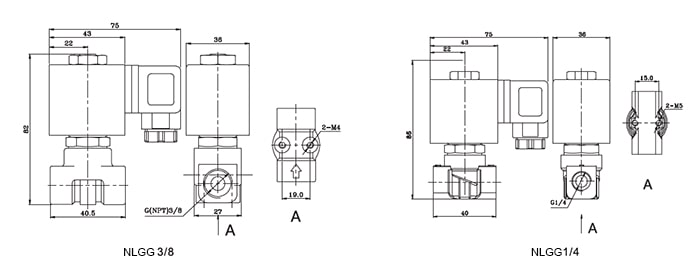

4. Diemsion
5. Packing Detail
Plastic Sealed packing to prevent metal being oxidized.

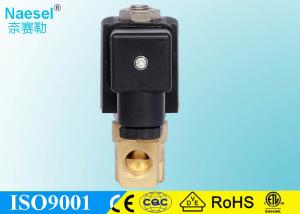

6. More Product Photo and Certifications
7. Why US?
Our core advantages to pursue Your Success.
1.Reliable Quality (We are OEM supplier of ASCO and Parker)
2.Over 20 years solenoid valve design and customize experience.
3.Mark Service(both Product and packing wiht your design and logo)
4.Related Supply Service, including Festo, SMC, , Airtac, Shako.
5.Good English communication
6.Opening Mind to growing with clients for different products.
(please continue reading to find out more detail)
