piston actuated steam solenoid NPT 1/2" US-15 brass piston solenoid valve
2L Series Pilot Operated Piston1/2" -2" Normally Closed
1. How To Order
Model Orifice Port Thread Body Seal Coil Voltage
2L 15, 20, 25, 32 1/2" to 2" G- G B-Brass V-FRM/Viton Y42H 1-AC220V 2-DC24V
40, 50(mm) N- NPT S-SS304/316 P-PTFE 3-AC110V 4-DC12V
R- BSPT 5-AC24V 6-DC6V
2L normally closed with S21B coil
Example : 2L15 GBP Y42H1: 2L Series, Normal open, 15mm orifice, G1/2", brass body, PTFE seals, Coil Y42H, AC220V.
2.Solenoid Valve Specification
Medium: Air, water, steam, oil, etc. Temperature: Viton seal:-30℃~150℃(-22℉~302℉)
Orifice: 15 , 20, 25, 32, 40, 50 (mm) PTFE seal:-30℃~200℃(-22℉~382℉)
Pressure: 2L:0.03MPA~1.6MPA (0.0PSI~232PSI)
Port thread: NPT, G Thread Port size: 1/2”, 3/4”, 1", 1-1/4", 1-1/2”, 2"
Voltage: DC:6VDC,12VDC, 24VDC, 36VDC, Coils: Y42H 50VA(AC),20W(DC),IP65,100%ED
AC:24VAC, 110VAC, 120VAC, 220VAC, 240VAC
Tolerance: ±10% Character: 1. Compact design to save the space.
Material: Body- Brass, stainless steel, Aluminum, 2. Direct acting, 0 bar generated.
Seal- VITION, NBR, EPDM, PTFE
Armature- SS304
Plunger- SS430F
Stop- SS430F
Spring- SS304
Shading Rings- Copper
Special Coils: Latching coil DC6~24V
3. Dimension
4. Specification Detail
| Model | Port | Orifice | CV | Min. Pressure | Max. Pressure | Body Material | Seal Material | Coil |
| AC(50VA) | DC(20W) |
| 2L15XXX | 1/2" | 15 | 4.5 | 0.03Mpa | 1.6Mpa | 1.6Mpa | Brass | Viton (FKM) PTFE | Y42H |
| 2L20XXX | 3/4" | 20 | 9.3 | 0.03Mpa | 1.6Mpa | 1.6Mpa | Y42H |
| 2L25XXX | 1" | 25 | 12 | 0.03Mpa | 1.6Mpa | 1.6Mpa | Y42H |
| 2L32XXX | 1-1/4" | 32 | 24 | 0.03Mpa | 1.6Mpa | 1.6Mpa | Y42H |
| 2L40XXX | 1-1/2" | 40 | 29 | 0.03Mpa | 1.6Mpa | 1.6Mpa | Y42H |
| 2L50XXX | 2" | 50 | 48 | 0.03Mpa | 1.6Mpa | 1.6Mpa | Y42H |
5. Packing Detail
Plastic Sealed packing to prevent metal being oxidized.

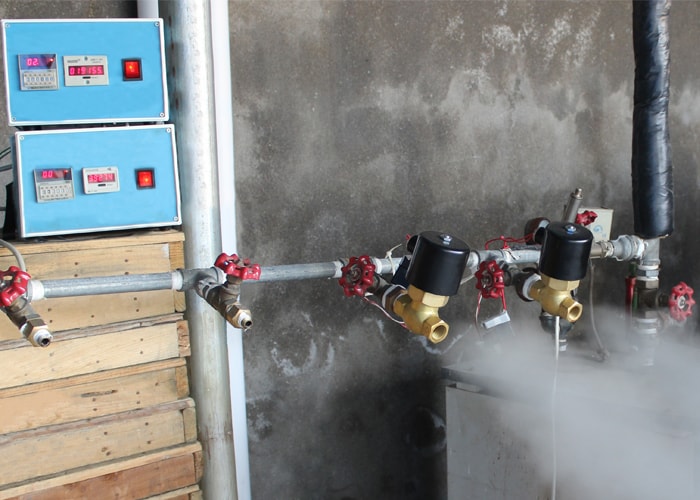

6. More Product Photo and Certifications
7. Why US?
Our core advantages to pursue Your Success.
1.Reliable Quality (We are OEM supplier of ASCO and Parker)
2.Over 20 years solenoid valve design and customize experience.
3.Mark Service(both Product and packing wiht your design and logo)
4.Related Supply Service, including Festo, SMC, , Airtac, Shako.
5.Good English communication
6.Opening Mind to growing with clients for different products.
(please continue reading to find out more detail)
Product Tags:
|
|

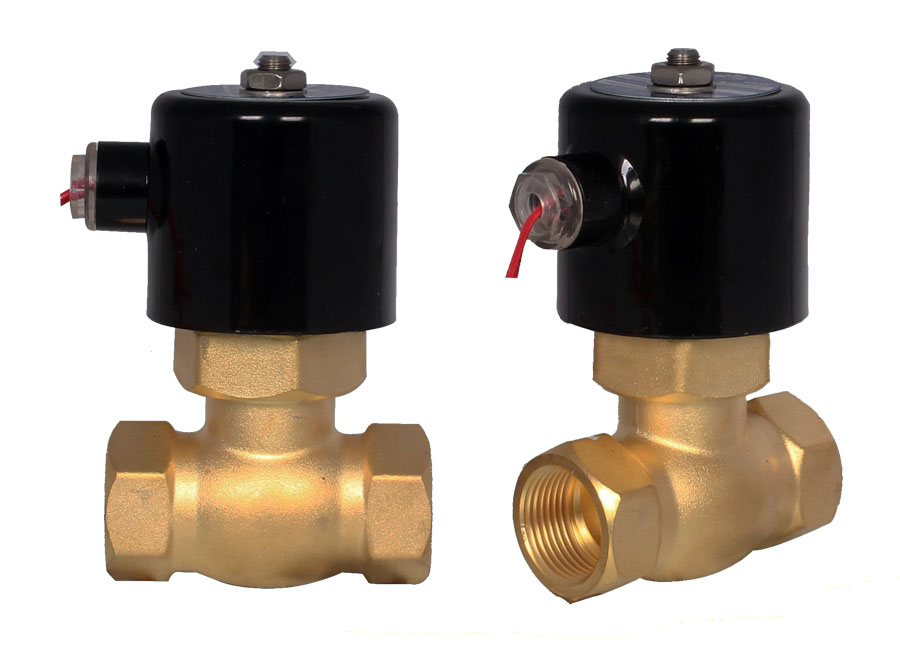

US15/2L15 piston actuated steam solenoid NPT 1/2" US-15 brass piston solenoid valve Images
|
